TTE/W • TTE/W-RR

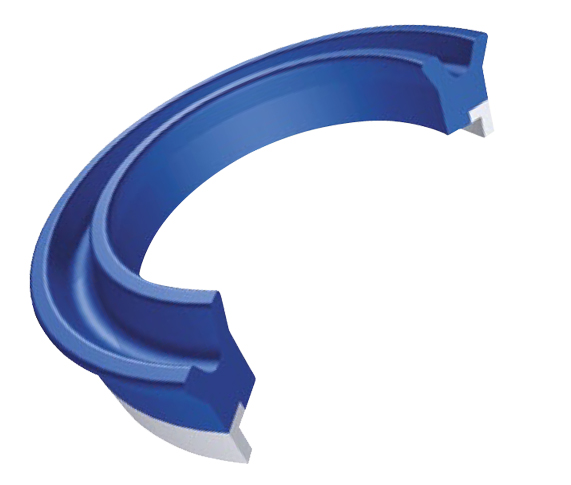

The TTE/W piston seal, produced in polyurethane “Tecnolan”, provides all the characteristics necessary to support the symmetrical profile this seal features. The inner lip provides static sealing while the outer lip, smaller and thicker, guarantees dynamic sealing. To complete the seal function, an Acetal Resin guide ring provides necessary resistance to guard against extrusion.
Standard version
  • TTE/W - Polyurethane Tecnolan+POM
  • TTE/W-RR Polyurethane Tecnolan+POM+ POM Snap Ring
Alternative Versions
  • Low Temperature Polyurethane+POM
Pressure up to
  • 50 MPa
Speed up to
  • 0.5 m/s
Temperature
  • -35°C +100°C
  • -50°C +110°C PN 522
Applications
  • Hydraulic Cylinders
  • Tail Lifts
  • Earthmoving Machinery
Download Brochure


PART NO. REF NO. Housing Dimensions
D d H F S
TTE/W 2001 32-20-8-W 32.00 20.00 9.00 28.50 6.35
TTE/W 2002 35-22-8-W 35.00 22.00 10.00 31.40 6.35
TTE/W 2003 40-25-8,5-W 40.00 25.00 9.50 35.40 6.35
TTE/W 2004 40-26-8,5-W 40.00 26.00 9.50 35.40 6.35
TTE/W 2004/2 40-28-9,5-W 40.00 28.00 9.50 35.40 6.35
TTE/W 2004/3 40-30-7-W 40.00 30.00 8.00 35.40 6.35
TTE/W 2004/1 40-30-8,5-W 40.00 30.00 9.50 35.40 6.35
TTE/W 2005 45-30-9-W 45.00 30.00 10.00 40.40 6.35
TTE/W 2006 45-35-8,5-W 45.00 35.00 9.50 40.40 6.35
TTE/W 2007 50-30-13,5 50.00 30.00 14.50 44.30 6.35
TTE/W 2008 50-35-10-W 50.00 35.00 11.00 45.35 6.35
TTE/W 2008/1 50-38-9,4-W 50.00 38.00 9.40 45.40 6.35
TTE/W 2009 50-40-10-W 50.00 40.00 11.00 45.40 6.35
TTE/W 2010 55-40-10-W 55.00 40.00 11.00 50.35 6.35
TTE/W 2011 60-40-13,5-W1 60.00 40.00 14.50 54.20 6.35
TTE/W 2012 60-40-13,5-W 60.00 40.00 14.50 55.40 6.35
TTE/W 2013 60-45-10/W1 60.00 45.00 11.00 55.40 6.35
TTE/W 2013/1 60-45-10-W1 60.00 45.00 11.00 55.40 6.35
TTE/W 2014 63-45-10-W 63.00 45.00 11.00 58.40 6.35
TTE/W 2015 65-50-10-W 65.00 50.00 11.00 60.40 6.35
TTE/W 2016 70-50-13,5-W 70.00 50.00 14.50 64.20 6.35
TTE/W 2016/1 70-50-13,5-W 70.00 50.00 14.50 64.20 6.35
TTE/W 2017 80-60-12-W 80.00 60.00 13.00 74.15 6.35
TTE/W 2018 80-60-13,5-W1 80.00 60.00 14.50 74.15 6.35
TTE/W 2018/1 80-60-W1 80.00 60.00 14.50 74.15 6.35
TTE/W 2019 90-70-12-W 90.00 70.00 13.00 84.15 6.35
TTE/W 2020 90-70-13,5-W1 90.00 70.00 14.50 84.15 6.35
TTE/W 2021 100-80-13,5-W 100.00 80.00 14.50 93.15 6.35
TTE/W 2022 100-80-13,5-W1 100.00 80.00 14.50 94.15 6.35
TTE/W 2023 110-95-12-W 110.00 95.00 13.00 103.10 6.35
TTE/W 2024 120-100-13,5-W 120.00 100.00 14.50 113.10 6.35
TTE/W 2024/1 120-100-12,5-W 120.00 100.00 13.50 113.50 6.35
TTE/W 2024/2 120-100-13,5-W1 120.00 100.00 14.50 114.10 6.35
TTE/W 2024/3 140-120-13,5-W 140.00 120.00 14.50 134.10 6.35
TTE/W 2024/4 140-120-12 DH 140.00 120.00 13.00 134.10 6.35
TTE/W 2025 150-130-12,5-W 150,00 130,00 13,50 144,10 6,35
